Galvanized Steel Wire for Marine Engineering and Offshore Cables

Key Words: galvanized, steel wire, marine, offshore, zinc coating, braiding, netting

Classification: Steel Wire

Product Highlights:

  • Wire diameter range: 0.15 mm – 2.00 mm
  • Zinc coating: Electro (≥12–15 g/m²), Hot-dip (≥25 g/m²)
  • Tensile strength: 320–500 N/mm²
  • Applications: Cable braiding, wire mesh weaving, marine netting
  • Packaging options: DIN spools, coils, customized weight 2–500 kg
View Product PDF

Basic Info.

Model NO.ZB-GW-MarineTechniqueElectro or Hot-Dip Galvanizing
ApplicationMarine Netting, Braiding, Mesh WeavingAlloy or NotNon-alloy (Low Carbon Steel)
StandardBS, JIS, GB, ASTMSurface TreatmentElectro or Hot Zinc Coated
Specification0.15–2.00 mmTensile Strength320–500 N/mm²
Zinc CoatingElectro: ≥12–15 g/m²; Hot Dip: ≥25 g/m²Elongation15–30%
Packing Range2–500 kgPackageDIN160/200/250/355, MP100, BICO100
OriginChinaHS Code7217200000
Production Delivery TimeIn 4 Weeks From Order ConfirmedProduction Capacity500 Tons/Month

Product Description

Our marine-grade galvanized steel wire is designed for cable braiding, mesh weaving, and hose braiding in demanding offshore and coastal applications. Made from low-carbon steel with either electro or hot-dip galvanizing, this wire offers excellent corrosion resistance, flexible packaging options, and customizable diameters from 0.15 to 2.00 mm.

Technical Specification

Technical Specifications
Nominal Wire Diameter (mm)Tensile Strength (N/mm²)Zinc Coating (g/m²)Elongation (%)Packing
0.15, 0.24, 0.28, 0.30, 0.40, 2.00320–500Electro: ≥12 or 15, Hot Dip: ≥2515–30DIN160, DIN200, DIN250, DIN355, MP100, BICO100
Tensile strength
Tensile strength ranges from 320–500 N/mm² depending on wire diameter and zinc coating method.

Key Features

  • Thick zinc coating for enhanced corrosion protection
  • Customizable spool or coil packing
  • Electro or hot-dip galvanized coating options
  • Produced according to BS, JIS, GB, ASTM standards

Packaging & Shipping

Packaging Range: 2–500 kg per spool or coil

Available Spools: DIN160, DIN200, DIN250, DIN355, MP100, BICO100

Transport Method: On pallets

Lead Time: Within 4 weeks from order confirmation

All specifications can be customized to suit customer requirements.

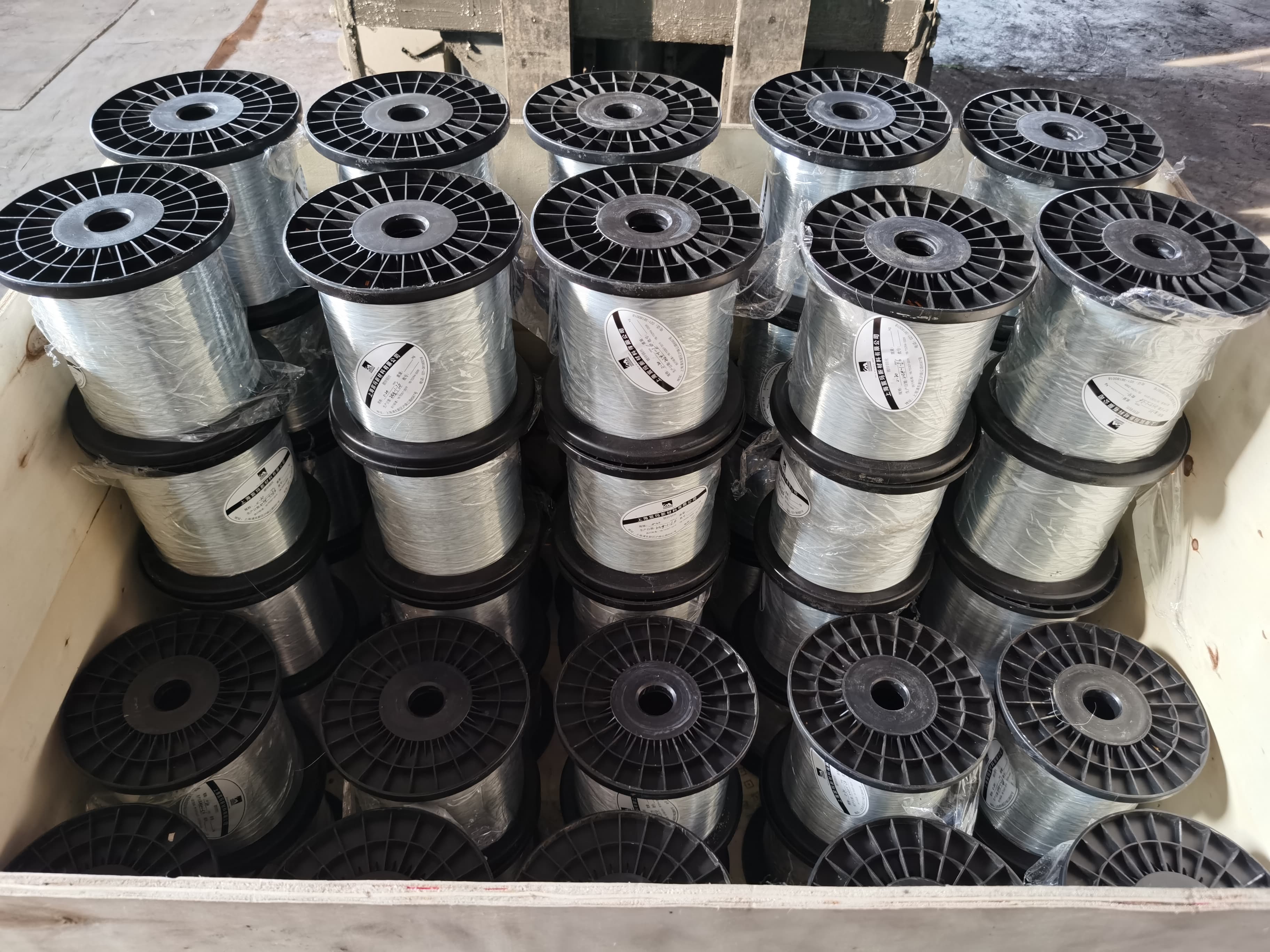

Warehouse and packaging

FAQ

Are you a manufacturer or trading company?

We are a professional manufacturer with our own factory and production lines. Zhongbo Steel Products Co., Ltd. has specialized in galvanized steel wire and strip production since 2003.

What is your production capacity?

Our total production capacity exceeds 110,000 tons per year, with a stable monthly capacity of about 9,000 tons for various galvanized steel wires and strips.

What are your main export markets?

Over 80% of our products are exported worldwide. Our main export markets include Southeast Asia, the Middle East, Europe, South America, and North America.

What details should I provide when inquiring?

Please provide the required wire diameter, tensile strength, zinc coating weight, coil or spool size, packaging requirements, and destination port. For special applications like cable armouring, please specify any additional standards or certifications needed.

What is your MOQ?

For trial orders, we accept small quantities like one coil for quality checking. For regular orders, we recommend full container loads (FCL) to ensure safe transportation and cost-effectiveness.

What are your payment terms?

T/T (30% advance, 70% balance before shipment), L/C at sight, or negotiable based on order size and buyer profile.

Can I get a free sample?

Yes, samples under 2 kg are available free of charge; courier cost is to be covered by the customer.

Is third-party inspection available?

Yes. Third-party inspection (SGS, BV, or customer-designated agent) is available before shipment, and the inspection cost will be borne by the buyer.
