Key Words: galvanized steel strip, armouring, hot-dip galvanized, steel fittings
Classification: Cable Armour
Product Highlights:
| Item | Unit | Technical Requirement | Test Result |
|---|---|---|---|
| Steel Thickness | mm | 0.74–0.84 | 0.79 |
| Steel Width | mm | 59.30–60.40 | 59.68 |
| Tensile Strength | N/mm² | 295–410 | 366 |
| Elongation | % | ≥20 | 34 |
| Zinc Coating Weight (avg.) | g/m² | ≥40 | 48 |
| Zinc Coating Weight (min.) | g/m² | ≥34 | 47 |
| Item | Unit | Technical Requirement | Test Result |
|---|---|---|---|
| Diameter | mm | 2.5 ± 0.06 | 2.49 |
| Out-of-Roundness | mm | ≤ 0.06 | 0.02 |
| Tensile Strength | N/mm² | 345–495 | 454 |
| Elongation (L₀=250mm) | % | ≥10 | 13 |
| Twist (L₀=150mm) | Turns/360° | ≥20 | 48 |
| Zinc Coating Weight | g/m² | ≥210 | 328 |
| Surface Quality | - | Uniform, continuous, no cracks or defects | Passed |

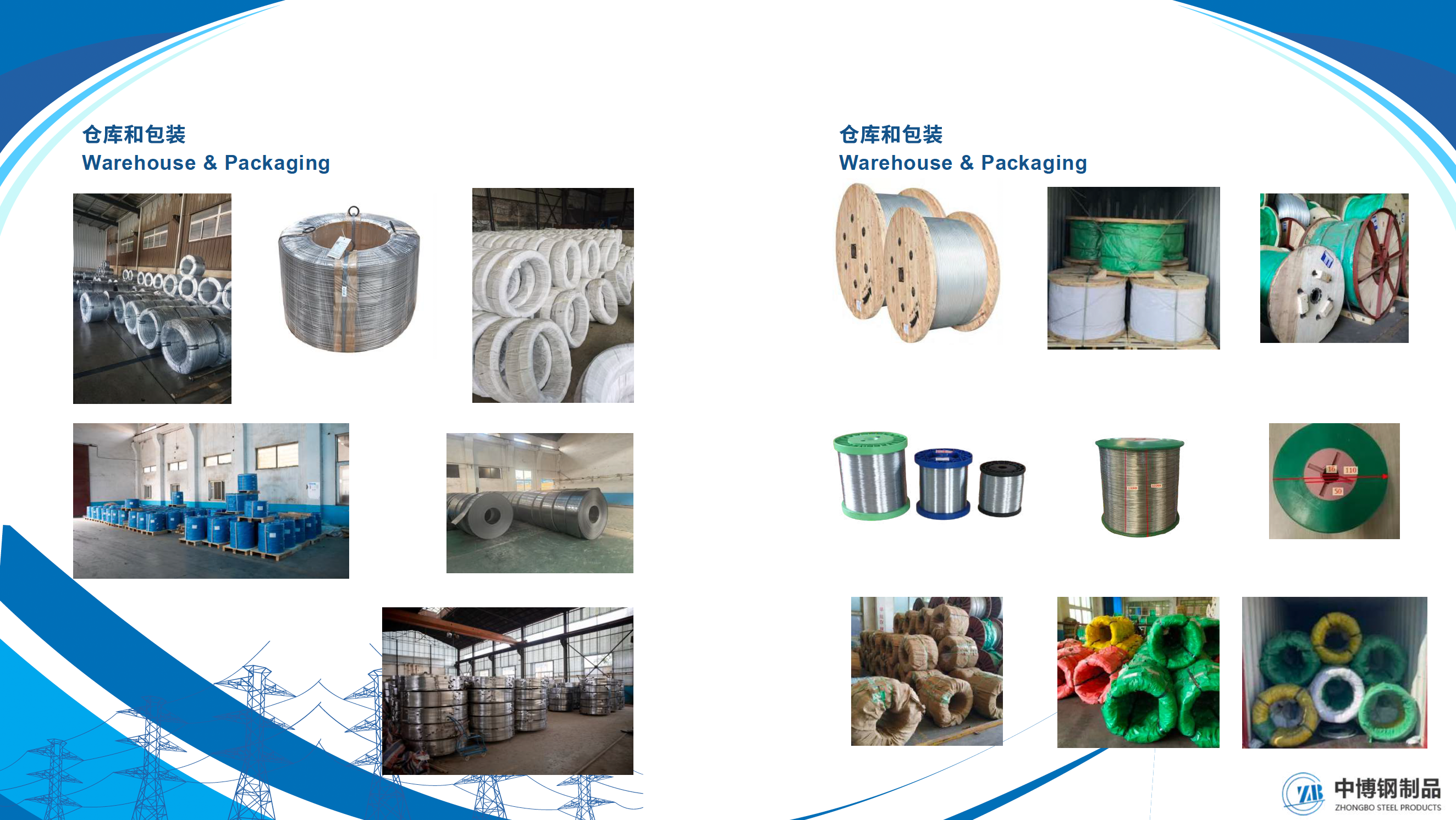

Coil form, standard pallet packaging, custom options available.
We are a professional manufacturer with our own factory and production lines. Zhongbo Steel Products Co., Ltd. has specialized in galvanized steel wire and strip production since 2003.
Our total production capacity exceeds 110,000 tons per year, with a stable monthly capacity of about 9,000 tons for various galvanized steel wires and strips.
Over 80% of our products are exported worldwide. Our main export markets include Southeast Asia, the Middle East, Europe, South America, and North America.
Please provide the required wire diameter, tensile strength, zinc coating weight, coil or spool size, packaging requirements, and destination port. For special applications like cable armouring, please specify any additional standards or certifications needed.
For trial orders, we accept small quantities like one coil for quality checking. For regular orders, we recommend full container loads (FCL) to ensure safe transportation and cost-effectiveness.
T/T (30% advance, 70% balance before shipment), L/C at sight, or negotiable based on order size and buyer profile.
Yes, samples under 2 kg are available free of charge; courier cost is to be covered by the customer.
Yes. Third-party inspection (SGS, BV, or customer-designated agent) is available before shipment, and the inspection cost will be borne by the buyer.
