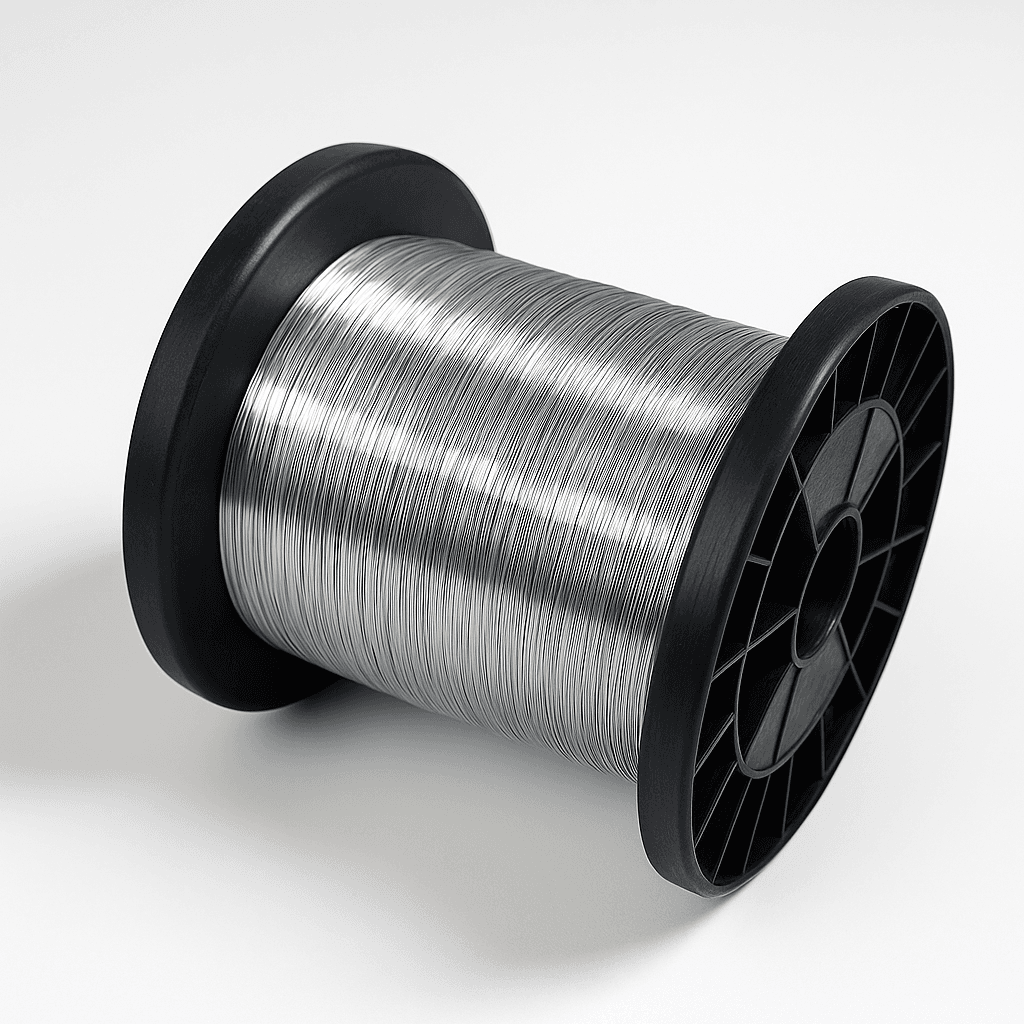

This galvanized steel wire is widely used for mesh weaving, cotton tying, welding, construction binding, and more. With wire diameter ranging from 0.12 to 7.0 mm, and available in hot-dip or electro galvanized forms, it offers reliable strength, anti-rust performance, and flexibility. Made from low/medium/high carbon steel, it is suitable for woven mesh, gabion, BBQ nets, screens, and other industrial or decorative use.
Technical Specification
Wire Gauge Specification Table
Gauge
SWG (mm)
BWG (mm)
Metric (mm)
6
4.87
5.15
5.032
7
4.47
4.57
4.481
8
4.05
4.19
4.00
9
3.66
3.76
4.00
10
3.25
3.40
3.50
11
2.95
3.05
3.00
12
2.64
2.77
2.80
13
2.34
2.41
2.50
14
2.03
2.11
2.50
15
1.83
1.83
1.80
16
1.63
1.65
1.65
17
1.42
1.47
1.40
18
1.22
1.25
1.20
19
1.02
1.07
1.00
20
0.91
0.84
0.90
21
0.81
0.81
0.80
22
0.71
0.71
0.70
23
0.61
0.635
0.573
24
0.56
0.559
0.511
25
0.51
0.508
0.455
26
0.46
0.457
0.405
Tensile strength
Tensile strength ranges from 350 MPa to 1500 MPa, depending on zinc coating method and carbon grade.
Key Features
Available in hot-dip and electro galvanized versions
Used for mesh weaving, curtain wire, tying, welding, etc.
Excellent anti-rust and corrosion resistance
Carbon steel grades: low, medium, or high carbon
Various wire diameters and gauge standards available

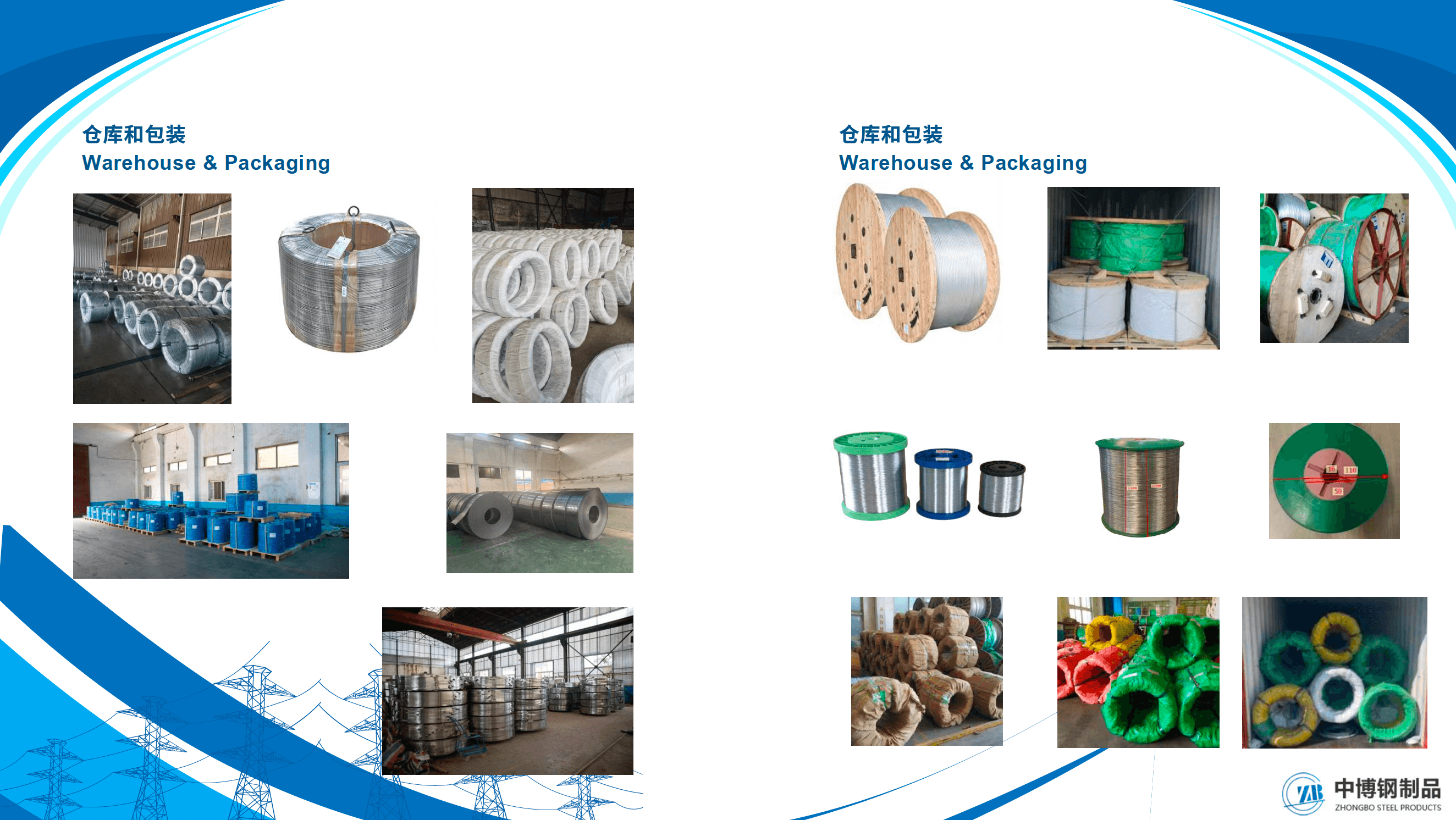

Packaging & Shipping
Packing Options: Coils, plastic film, weaved bag
Weight: 0.25 – 1000 kg per coil
Delivery: Based on order volume
Samples: Free
FAQ
Are you a manufacturer or trading company?
We are a professional manufacturer with our own factory and production lines. Zhongbo Steel Products Co., Ltd. has specialized in galvanized steel wire and strip production since 2003.
What is your production capacity?
Our total production capacity exceeds 110,000 tons per year, with a stable monthly capacity of about 9,000 tons for various galvanized steel wires and strips.
What are your main export markets?
Over 80% of our products are exported worldwide. Our main export markets include Southeast Asia, the Middle East, Europe, South America, and North America.
What details should I provide when inquiring?
Please provide the required wire diameter, tensile strength, zinc coating weight, coil or spool size, packaging requirements, and destination port. For special applications like cable armouring, please specify any additional standards or certifications needed.
What is your MOQ?
For trial orders, we accept small quantities like one coil for quality checking. For regular orders, we recommend full container loads (FCL) to ensure safe transportation and cost-effectiveness.
What are your payment terms?
T/T (30% advance, 70% balance before shipment), L/C at sight, or negotiable based on order size and buyer profile.
Can I get a free sample?
Yes, samples under 2 kg are available free of charge; courier cost is to be covered by the customer.
Is third-party inspection available?
Yes. Third-party inspection (SGS, BV, or customer-designated agent) is available before shipment, and the inspection cost will be borne by the buyer.
