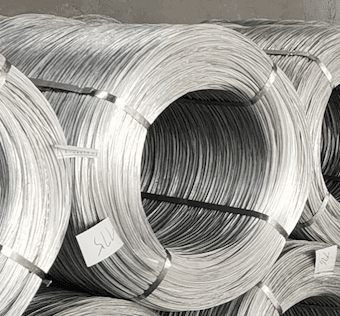

Key Words: galfan wire, zinc aluminum alloy, mesh wire, gabion, fencing, Zn-Al coated, high corrosion resistance
Classification: Steel Wire
Product Highlights:
| Model NO. | ZB-Galfan-Wire | Technique | Hot Dip Galfan Alloy Coating |
|---|---|---|---|
| Material | Low Carbon Steel (SAE1006 / SAE1008) | Coating Type | Zn-10%Al (Galfan) |
| Application | Gabion, Fencing, Wire Mesh Weaving | Standard | ASTM A641, B750, JIS G3547, EN 10244 |
| Tensile Strength | 350–550 MPa | Diameter | 2.2–3.4 mm |
| Zinc Coating | 200–600 g/m² | Elongation | ≥15% |
| Packing Weight | 50–1000 kg | Transport Package | Plastic film + coil / spool / pallet |
| Origin | China | Trademark | Zhongbo Steel |
| Diameter (mm) | Coating Weight (g/m²) | Tensile Strength (MPa) | Elongation (%) | Packaging |
|---|---|---|---|---|
| 2.20 | 200–300 | ≥350 | ≥15% | Coil / Spool |
| 2.70 | 300–450 | ≥450 | ≥15% | Coil / Spool |
| 3.00 | 400–500 | ≥500 | ≥15% | Coil / Spool |
| 3.40 | 500–600 | ≥550 | ≥15% | Coil / Spool |
| Nominal Diameter (mm) | Tolerance (mm) |
|---|---|
| 2.20–2.70 | ±0.02 |
| 2.71–3.40 | ±0.03 |
| Element | % |
|---|---|
| Carbon | 0.06 max |
| Phosphorus | 0.03 max |
| Manganese | 0.40–0.60 |
| Silicon | 0.10–0.35 |
| Sulphur | 0.03 max |
Packaging: Coils or spools wrapped with plastic film and placed on pallets
Weight per Coil: 50–1000 kg
Lead Time: 15–30 working days depending on quantity
Port of Shipment: Tianjin, Qingdao or Shanghai
We are a professional manufacturer with our own factory and production lines. Zhongbo Steel Products Co., Ltd. has specialized in galvanized steel wire and strip production since 2003.
Our total production capacity exceeds 110,000 tons per year, with a stable monthly capacity of about 9,000 tons for various galvanized steel wires and strips.
Over 80% of our products are exported worldwide. Our main export markets include Southeast Asia, the Middle East, Europe, South America, and North America.
Please provide the required wire diameter, tensile strength, zinc coating weight, coil or spool size, packaging requirements, and destination port. For special applications like cable armouring, please specify any additional standards or certifications needed.
For trial orders, we accept small quantities like one coil for quality checking. For regular orders, we recommend full container loads (FCL) to ensure safe transportation and cost-effectiveness.
T/T (30% advance, 70% balance before shipment), L/C at sight, or negotiable based on order size and buyer profile.
Yes, samples under 2 kg are available free of charge; courier cost is to be covered by the customer.
Yes. Third-party inspection (SGS, BV, or customer-designated agent) is available before shipment, and the inspection cost will be borne by the buyer.
