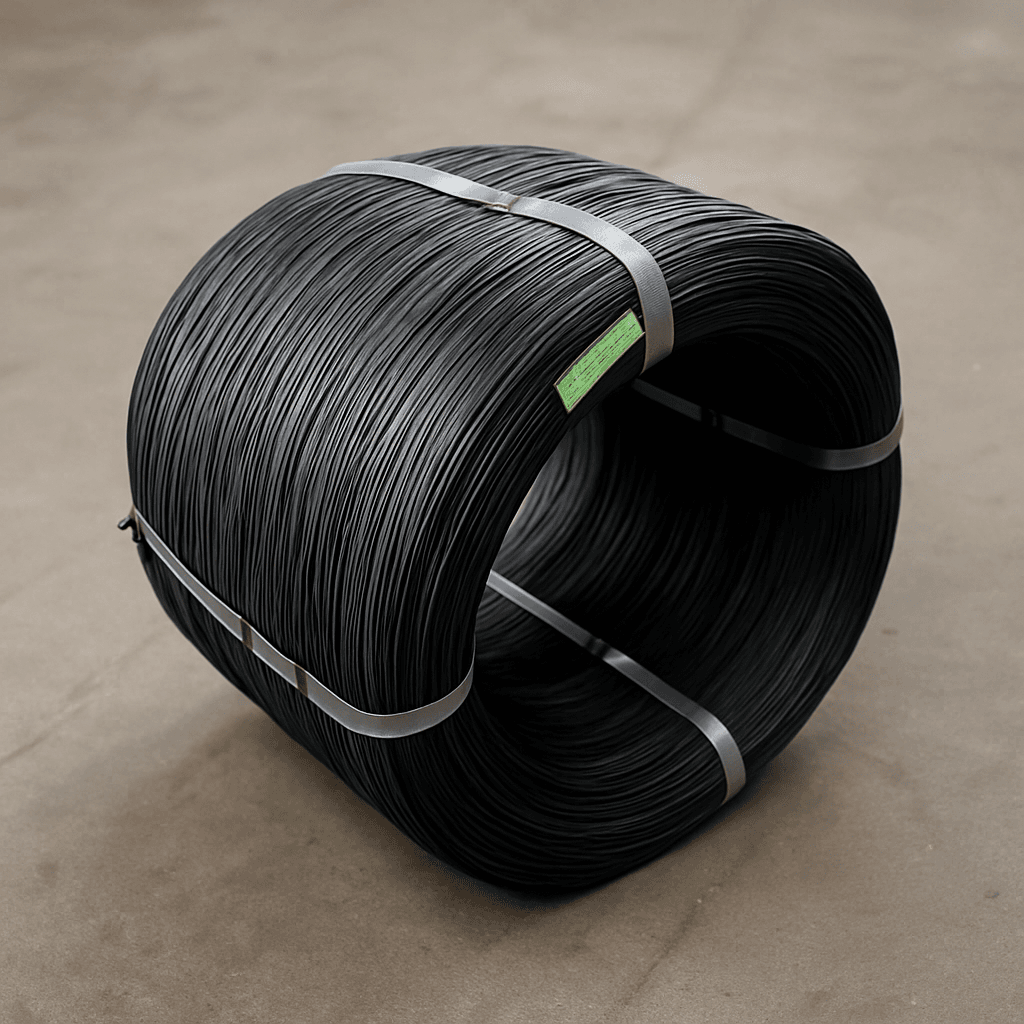

Key Words: black annealed wire, low carbon wire, packing wire, binding wire, soft steel wire, industrial wire, cold drawn wire
Classification: Steel Wire
Product Highlights:
| Model NO. | ZB-BAW | Technique | Cold Drawn / Heat Treated |
|---|---|---|---|
| Material | Low Carbon Steel | Type | Annealed Wire |
| Application | Packing, Tying, Shelving, Fabrication | Surface | Black Coated |
| Tensile Strength | 500–1100 MPa | Diameter | 1.6–12.5 mm |
| Elongation | varies by size | Standard | Customer Standard |
| Transport Package | Plastic Wrapped Coils | Weight/Coil | Customizable |
| Origin | China | Trademark | Zhongbo Steel |
| Nominal Diameter (mm) | Tensile Strength (MPa) |
|---|---|
| ≤1.75 | 800–1100 |
| 1.75–2.00 | 750–1050 |
| 2.00–2.24 | 700–1000 |
| 2.24–2.70 | 650–950 |
| 2.70–2.80 | 600–900 |
| 2.80–4.20 | 550–850 |
| 4.20–10.00 | 500–800 |
| 10.00–11.50 | 450–750 |
| 11.50–12.50 | 500–800 |
| Nominal Diameter (mm) | Tolerance (mm) |
|---|---|
| 1.60–1.80 | ±0.02 |
| 1.80–2.80 | ±0.03 |
| 2.80–5.00 | ±0.03 |
| 5.00–8.00 | ±0.03 |
| Element | HDLC | Truform | Hiform |
|---|---|---|---|
| % Carbon | 0.04–0.07 | ≤0.05 | ≤0.06 |
| % Phosphorus | ≤0.03 | ≤0.03 | ≤0.04 |
| % Manganese | 0.40–0.60 | ≤0.50 | 0.25–0.50 |
| % Silicon | 0.12–0.22 | 0.12–0.18 | ≤0.05 |
| % Sulphur | ≤0.03 | ≤0.03 | ≤0.04 |
Packaging: In coils wrapped with plastic film or gunny cloth
Weight per Coil: Customizable based on customer need
Lead Time: 15–25 working days
Shipping Ports: Tianjin, Qingdao, or other ports in China
We are a professional manufacturer with our own factory and production lines. Zhongbo Steel Products Co., Ltd. has specialized in galvanized steel wire and strip production since 2003.
Our total production capacity exceeds 110,000 tons per year, with a stable monthly capacity of about 9,000 tons for various galvanized steel wires and strips.
Over 80% of our products are exported worldwide. Our main export markets include Southeast Asia, the Middle East, Europe, South America, and North America.
Please provide the required wire diameter, tensile strength, zinc coating weight, coil or spool size, packaging requirements, and destination port. For special applications like cable armouring, please specify any additional standards or certifications needed.
For trial orders, we accept small quantities like one coil for quality checking. For regular orders, we recommend full container loads (FCL) to ensure safe transportation and cost-effectiveness.
T/T (30% advance, 70% balance before shipment), L/C at sight, or negotiable based on order size and buyer profile.
Yes, samples under 2 kg are available free of charge; courier cost is to be covered by the customer.
Yes. Third-party inspection (SGS, BV, or customer-designated agent) is available before shipment, and the inspection cost will be borne by the buyer.
