Galvanized Steel Wire for Braiding and Weaving (0.2–2.0 mm)
- Diameter range: 0.2–2.0 mm
- Converter-grade wire for mechanical braiding, cable/hose reinforcement and fine mesh weaving
- Controlled cast, helix, ovality and clean surface for stable multi-carrier pay-off
- Electro- or hot-dip galvanized, with coating mass by diameter and process
- Spool format matched to your braiding or weaving equipment
Made to order to your diameter, coating, tensile grade and standard — request a quote for price, minimum order quantity and lead time.
Specifications
| Model NO. | ZB-GEN-BRAID |
| Technique | Fine-wire drawing followed by electro- or hot-dip galvanizing |
| Application | Cable/hose mechanical braiding, reinforcement, woven mesh and other continuous conversion |
| Alloy or Not | Non-alloy steel unless the approved order states otherwise |
| Standard | Customer specification; general steel-wire and coating standards after review |
| Surface Treatment | Electro- or hot-dip galvanized |
| Dimensions Tolerance | By diameter, including ovality, cast and helix limits to approved specification |
| Delivery Time | Quoted after diameter, mechanical properties, coating, packing, quantity and destination are confirmed |
| Material | Low-carbon steel wire; approved grade per order |
| Specification | 0.2–2.0 mm round wire |
| Available | OEM / ODM / manufacture to drawing, subject to technical review |
| Transport Package | Approved plastic or steel spools, small coils, reels or drums to the confirmed format |
| Trademark | Zhongbo Steel |
| Origin | Xinzheng, Henan, China |
| HS Code | Confirmed by material, finish, cross-section and destination |
| Production Capacity | Confirmed with the quotation |
Mechanical and coating window
| Property | Value |
|---|---|
| Tensile strength | 320–500 MPa |
| Elongation | 15–30% |
| Electro-galvanized coating | Min. 12–15 g/m² (by size) |
| Hot-dip galvanized coating | Min. 25 g/m² |
Tensile Strength
A formable low-carbon condition at about 320–500 MPa with 15–30% elongation is the working window (see the table above); a converter usually holds a narrower band within it to keep braid tension, loop formation or mesh geometry. We add cast, helix and straightness acceptance too, because tensile strength alone does not predict pay-off behaviour.
Features
- Fine diameter and ovality control for multi-carrier braiding or weaving
- Stable cast and helix for smooth pay-off
- Uniform zinc coating with controlled adhesion
- Formable mechanical condition for repeated bending in conversion
- Customer-matched spool dimensions and winding
- Batch inspection and trial-lot support
Packaging & Shipping
We work to your spool compatibility requirement — flange diameter, barrel diameter, traverse width, bore, net weight and material — and, for high-speed equipment, to level-winding and crossing-defect limits. Fine wire ends and spool flanges are protected in transit.
- Approved plastic or steel spools to your drawing

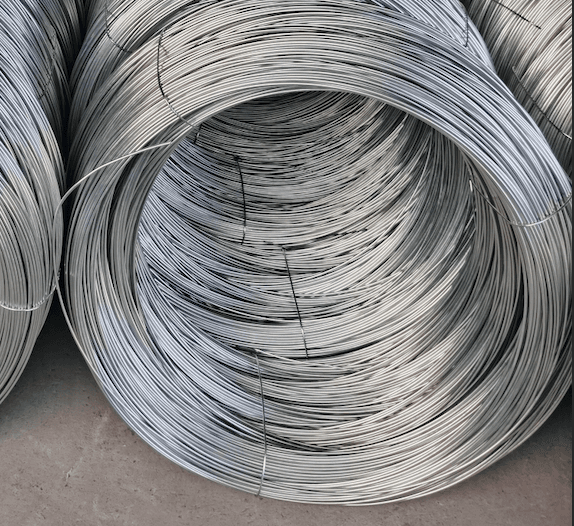

- Small coils for manual weaving
- Large reels or drums for continuous conversion where feasible
- Palletized export packs with moisture protection
Use cases
- Mechanical braid around cables or conduits
- Hose-reinforcement braiding where galvanized steel is specified
- Fine woven wire mesh
- Industrial screens, filters and protective fabric after converter validation
Who it is for
Braiding companies, hose manufacturers, cable converters, mesh weavers and fine-wire distributors that need controlled spool and pay-off performance.
Standards, certificates & inspection
Your diameter, tensile/elongation, cast/helix, coating and spool specification control; general EN 10218 test and dimension standards and EN/ISO coating methods are referenced where applicable. We do not claim electrical-shielding performance unless it is separately tested for the finished braid. Every batch is produced under an ISO 9001 quality management system and can ship with a mill test certificate covering diameter, tensile strength and zinc-coating weight. Third-party or pre-shipment inspection (SGS, BV or customer-appointed) is available on request.
See test reports & inspection and quality control & testing for the full documentation.
Frequently asked questions
Which spool sizes are available?
We publish a verified spool matrix or work from your drawing — spool geometry and winding quality directly affect braider uptime.
Is the wire suitable for electrical shielding?
It provides steel mechanical reinforcement; electrical-shielding performance depends on conductivity, coverage and system design and should not be assumed.
Can you control cast and helix?
We offer numerical limits once the measurement method and process capability are confirmed.
Can I test a trial spool?
Yes — a trial spool lets you evaluate breaks, feed tension, surface and finished-braid quality before a bulk order.
Request a quote
Send your diameter, coating, standard and quantity, and we’ll reply with a quotation.
Get a QuoteTechnical documents
Download the product catalogue, or contact us for certificates and test reports.
Product catalogue (PDF)You May Also Need
Galvanized Steel Wire for Filter-Mesh and Fine-Screen Weaving (0.15–1.0 mm)
- Diameter range: 0.15–1.0 mm (fine-wire, Zhongbo legacy range)
- Input wire for woven/welded filter mesh, fine screens and industrial wire cloth — not finished filter mesh
- Fine diameter, ovality, cast and helix controlled for stable weaving/crimping
Galvanized Binding and General-Purpose Steel Wire (0.8–4.0 mm)
- Overall diameter range: 0.8–4.0 mm (soft tying emphasis 0.8–1.6 mm)
- Soft, easily tied grades and harder general-fabrication grades presented separately
- Electro-galvanized or hot-dip galvanized finish, with a measured coating mass

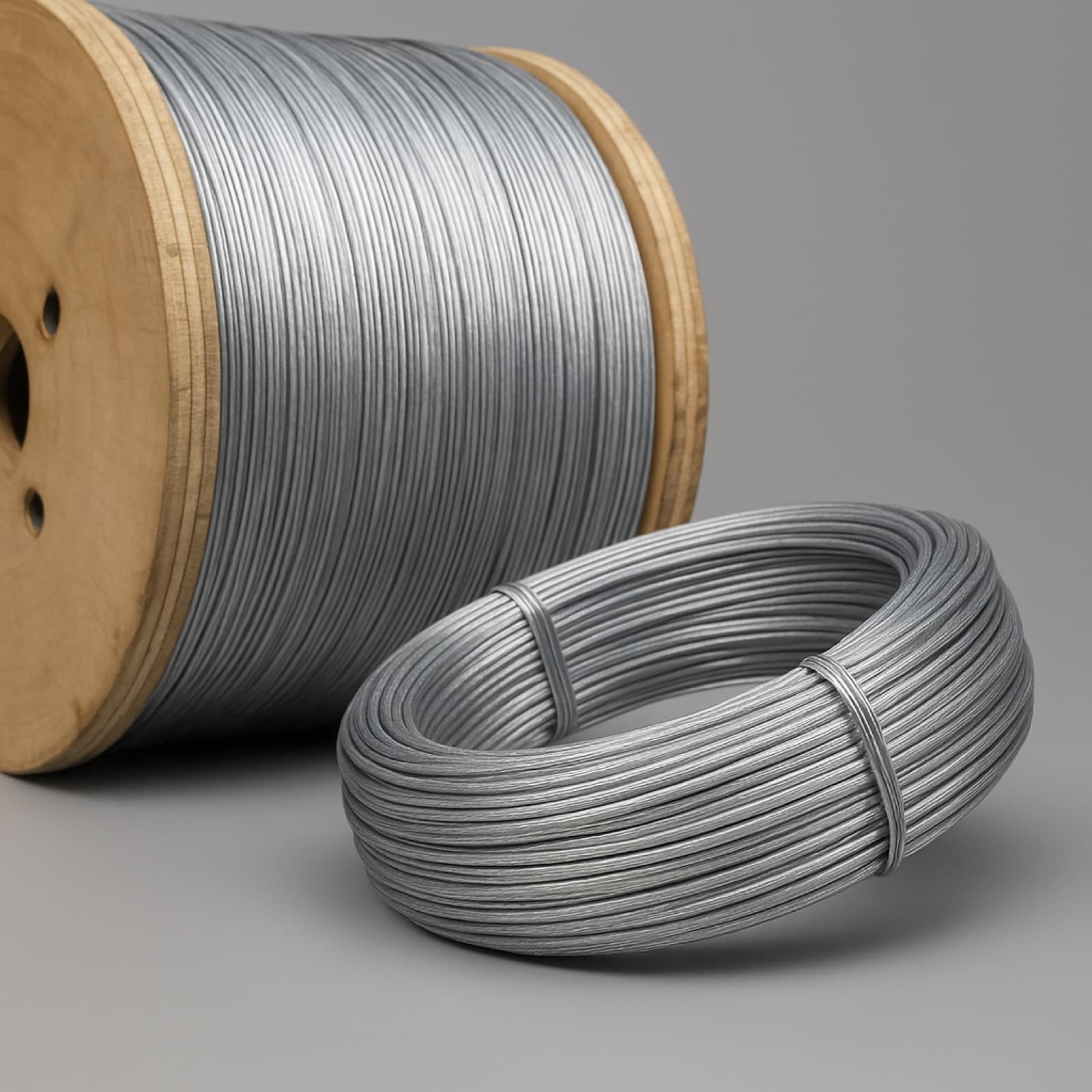

Bright Annealed Low-Carbon Steel Wire for Automotive Knitted Mesh and Muffler Components (0.2–0.9 mm)
